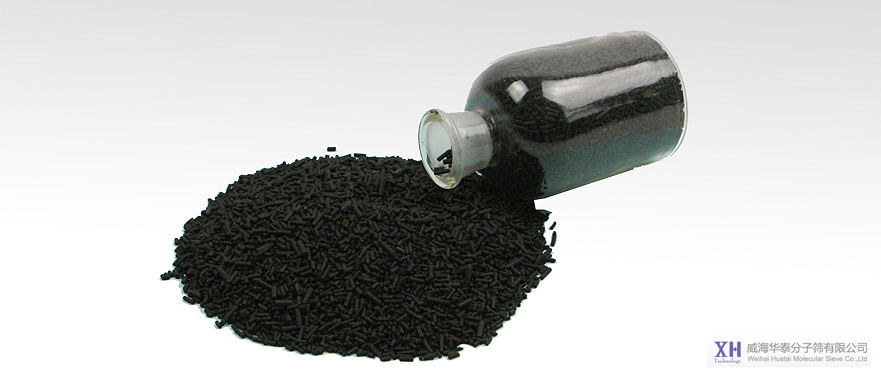

Carbon molecular sieve (CMS) is a new and one of the few non-polar adsorbent that fuses the ideas behind both activated carbon and zeolites into one product. Carbon molecular sieve specializes in separating oxygen from nitrogen under the normal temperature and pressure, an important part in natural gas processing. This process is done with a PSA (Pressure Swing Adsorption) device. Carbon molecular sieve can adsorbing material less than 10 angstroms, something activated carbon can not do accurately. Various pore sizes can be creased for Carbon molecular sieve. Carbon Molecular sieve can be applied in many different fields, such as petroleum chemical industry, metal heat treatment, electron production, and as preservative in food products etc.

Our CMS products have the characters of high nitrogen yield capacity and nitrogen recovery rate which can meet all types of PSA nitrogen systems requirements.


Model

Adsorption Pressure

(MPa)

N2 Purity

(%)

N2 Yield

(L/h.kg)

N2 Recovery Rate

(%)

HTCMS-185

0.6

99.99

46

≥21

99.9

100

≥31

99.5

160

≥40

99.0

220

≥45

98.0

250

≥46

97.0

300

≥48

0.8

99.99

58

≥21

99.9

115

≥31

99.5

185

≥40

99.0

245

≥45

98.0

300

≥46

97.0

355

≥48



Physical Properties

Adsorption period: 2*60 Second

Cylindrical Diameter: 1.5-2.0mm

Bulk Density: 630-660 g/l

Crushing Strength: ≥100 N/P MIN

Packaging

20kg/44kg PVC plastic drums with nitrogen sealed.
